Specification

Voltage (Uc)	Uc – 24 to 240 V AC 50/60 Hz. 24 to 220 V DC.
Time Delay	80 ms ± 5%
Repeat Accuracy	Better than 3%
Operating Conditions	-5C to +55C
Relay	10A @250V AC / 30V DC resistive load. Ie AC 15 & Ie DC 13.
Indications	POWER ON – RED LED. RELAY ON --RED LED after delay.
Enclosure	UL 94. ABS 128.
Configuration	A1,A2: Uc 15,16,18 Relay change contact.

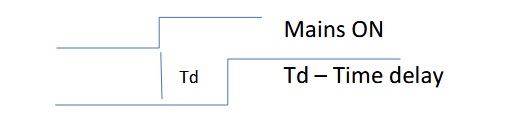

Function	Relay operation after set time Completion.

Tests performed

• • 1. Burn in for 24 hour @ AC & DC voltages.
  • 2. Repeat accuracy better than 100 msec.
  • 3. Time setting accuracy better than 3%.
  • 4. High voltage test at 2.5 kv.
  • 5. Between A1 + A2 and body of the enclosure.
  • 6. After keeping unit under test (UUT) on MS plate and applying
  • 2.5 kv between MS plate and UUT.
  • 7. Burn in test at +55 C for 48 hrs with UUT energized.
  • 8. Burn in test at -5 C for 48 hrs with UUT energized.
  • 9. Terminal tightening torque 60 to 70 Ncm.
