Electronics Hooter

Technical Data Sheet

96 X96 X 60 MM PANEL SIZE.
92 X92 MM CUT OUT.
THREE TONE FACILITY.
WIDE VOLTAGE RANGE.
WORKING ON AC / DC VOLTAGES.
PIEZO WITH LOUD SOUND.
DIN MOUNTING.

Specification

  • IN PUT CURRENT < 20 MA.
  • IN PUT VOLTAGE - 24 V AC / DC TO 265 V AC / DC.
  • AUDIO OUT PUT > 100 DB. + / - 5%.
  • THREE TONES WITH DIFFERENT FREQUENCIES AS PER SELECTION CHART.
  • VOLTAGE AND TONE SELECTION TERMINALS ARE GIVEN AT THE REAR.

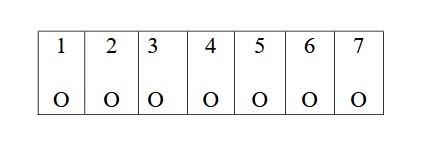

Connection Diagram

  • PIN 6 & 7 - SUPPLY VOLTAGE.
  • Pin 3 - GROUND.
  • PIN 4 – NC.
  • PIN 1,2 & 3 – OPEN – ONE TONE
  • PIN 2 & 3 SHORTED – SECOND TONE.
  • PIN 2 & 1 SHORTED – THIRD TONE.
